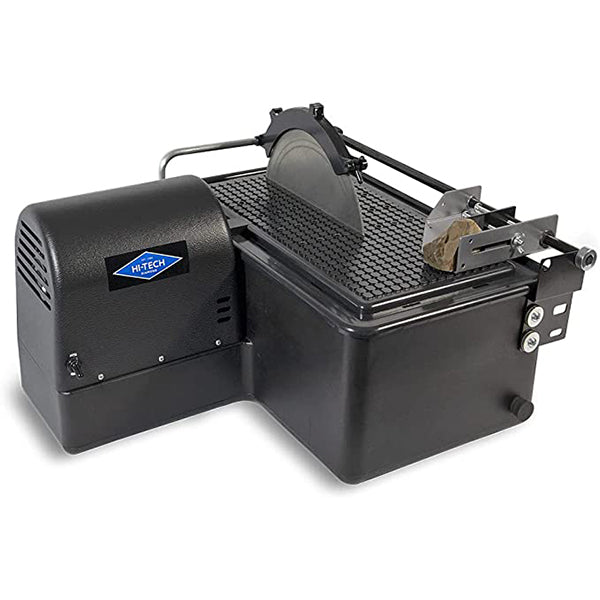

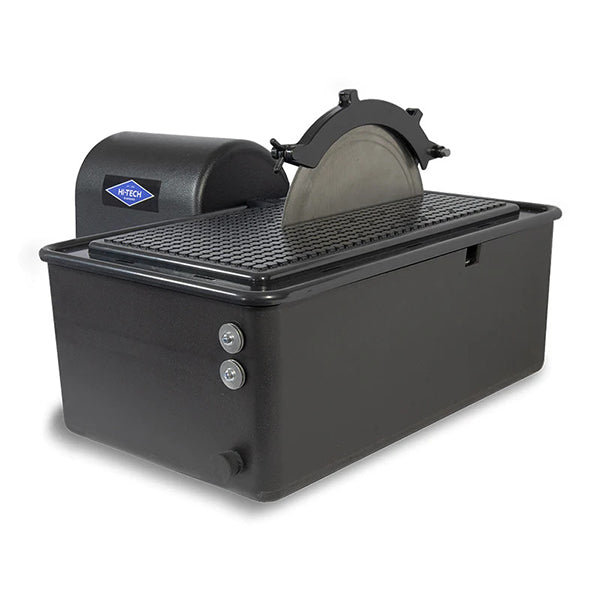

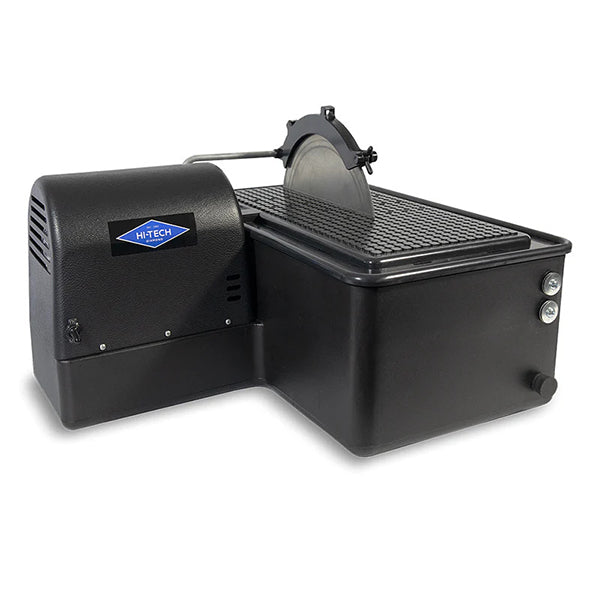

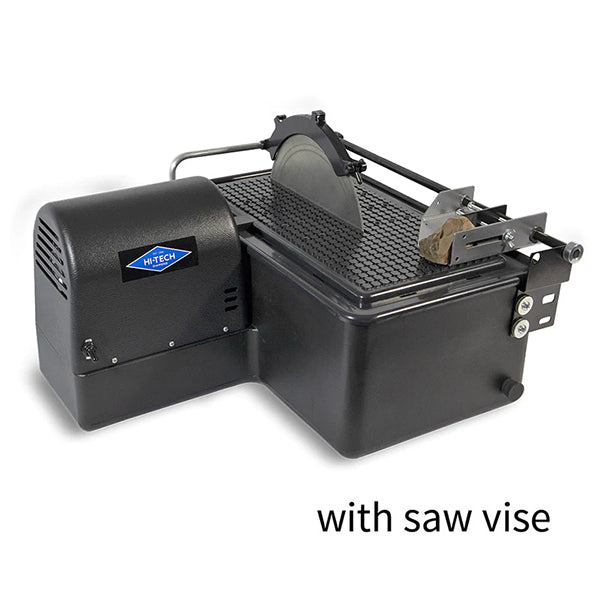

The High Tech Diamond, American-made 10″ slab saw is a powerful, economical saw machine that is used for slabbing larger rocks, minerals and glass into more manageable pieces. This saw includes TWO different types of 10″ saw blades to best-suit your cutting material; one notched diamond saw blade and one sintered diamond saw blade. Saws are available with or without the saw vise and rail accessory.

The Hi-Tech Diamond 10" slab saw is manufactured with a 5/8" arbor and will accept any 10" saw blade that has a 5/8" arbor. The large, removable saw table gives you plenty of room and allows for some carving ability, measuring 19-3/4" L X 12" W. The housing is made of unbreakable, cross-linked polyethylene that makes it rustproof and easy to clean. Installed in each slab saw is a 1/3 hp motor to provide plenty of strength for large cuts, delivering a speed of 1,725 rpm. The coolant reservoir is built right into the base of the machine and can hold up to 224 ounces (7 quarts) of water. Simply drain the reservoir with the built-in drain plug, which makes cleanup fast and easy. The splash guard that comes with the machine keeps water off you and on your piece, making it easier for you to work.

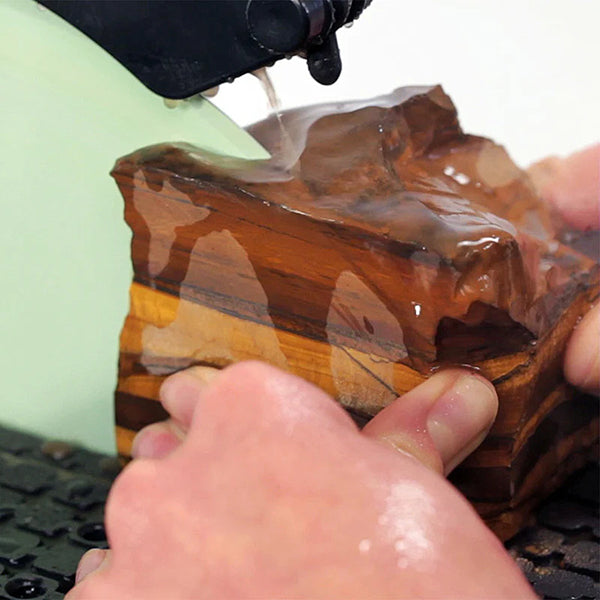

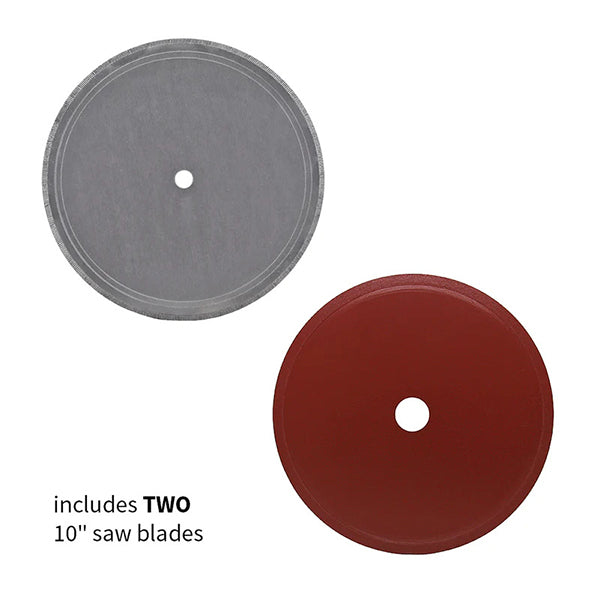

This Hi-Tech Diamond 10" slab saw machine comes with TWO different types of 10" saw blades to best-suit your cutting material. The notched diamond saw blade is designed for slabbing large rocks and minerals such as agates, jades and geodes, while the sintered diamond saw blade is designed for cutting large pieces of glass, topaz, quartz and fine agates.

Specifications

  • Perfect saw for slabbing larger stones and material into more manageable pieces
  • 115V, 1/3 hp motor installed delivers a speed of 1,725 rpm
  • Large, 19-3/4" x 12" saw table
  • Built-in water reservoir holds up to 7 qts of water and comes with a built-in drain plug
  • Includes one 10" thick notched diamond saw blade
  • Includes one 10" thin sintered diamond saw blade
  • Machine dimensions: 19" L X 21" W X 12" H
  • Machine weight: 35 lbs
  • Saw housing construction: rustproof, cross-linked polyethylene
  • Saw blade height: 3-3/4"
  • Saw blade depth: 9-3/4"
  • Country of origin: U.S.A.
  • Shipped from: U.S.A.

What's Included

  • 10" x .031" x .044" thick notched diamond saw blade
  • 10" x .031" x .038" thin sintered diamond saw blade
  • Black spray shield
  • Allen wrench
  • Hi-Tech Diamond waterproof apron
  • Complete written and visual instruction manual
  • One-year manufacturer warranty

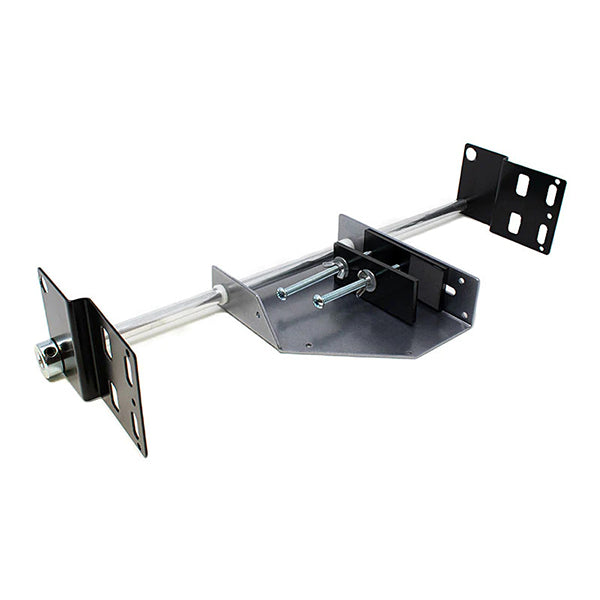

Rock Vise

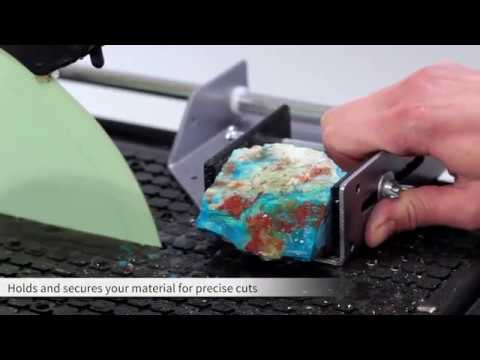

Save your fingers! Our saw vise attachments secure your rock, mineral and glass pieces while you cut so you don't have to put your hands near the saw blade. Simply bolt this accessory on your Hi-Tech Diamond saw machine, secure your material, then manually advance the carriage to feed your material evenly into the saw blade. Get safe, precise cuts every time! Made exclusively for the Hi-Tech Diamond 6″ trim saw

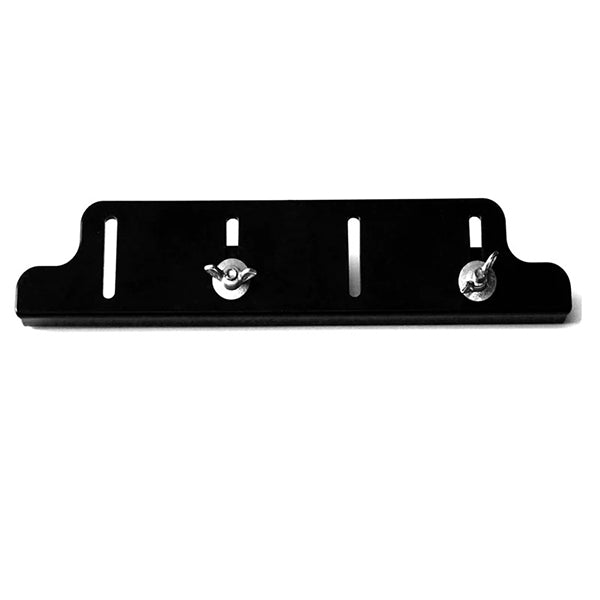

Saw Fence
The Hi-Tech Diamond saw fence securely fits onto the Hi-Tech Diamond 6″ trim saw and 10″ slab saw tables to aid in precise alignment of your material for accurate cuts. It is easily adjusted to accommodate the size of your material.

Please note: There is no size difference; this saw fence fits and is compatible with both the 6" trim saw and 10" slab saw machines ONLY.

International Customers - Please contact us for a quotation!

The 220 volt models are available only for overseas customers that require 220V - 240V power supply. All 220 volt models are manufactured with this CE rated, Type F plug (see below):
international type f plug


FAQ

What is the Hi-Tech Diamond 10" Slab Saw used for?

The Hi-Tech Diamond 10" Slab Saw is used for slabbing larger rocks, minerals, and glass into more manageable pieces.

What saw blade sizes does it accommodate?

The saw accepts any 10" saw blade with a 5/8" arbor.

What types of saw blades are included?

It comes with two 10" saw blades - one notched diamond blade for rocks/minerals and one sintered diamond blade for glass/quartz.

What are the dimensions of the saw table?

The large, removable saw table measures 19-3/4" L x 12" W, providing ample cutting space.

What material is the housing made of?

The housing is made of unbreakable, cross-linked polyethylene that is rustproof and easy to clean.

Is a vise or rail accessory available?

Yes, the saw is available with or without a saw vise and rail accessory for securing materials during cutting.

What safety features does it have?

It has a removable blade guard for safe operation. A vise accessory allows cutting without hands near the blade.

Is the saw suitable for glass cutting?

Yes, the included sintered diamond blade is designed specifically for cutting large pieces of glass.
