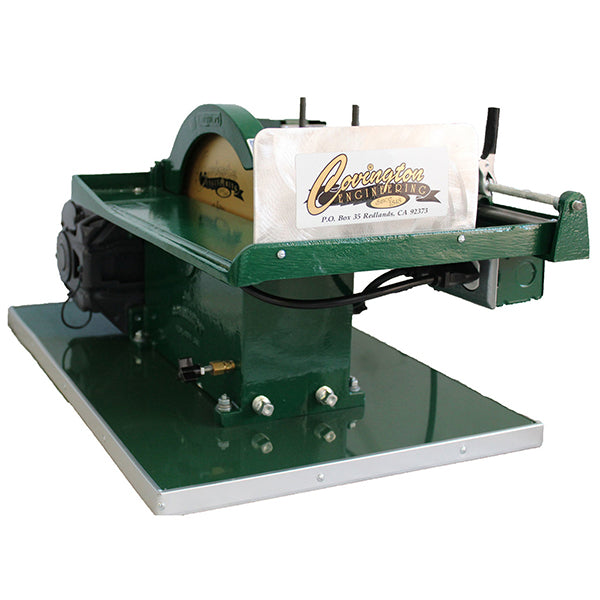

The Covington 10" Trim Saw with Power Feed is the perfect tool for lapidary enthusiasts and professionals alike. This high-quality saw is designed to make precise cuts on rocks, minerals, and glass with ease and efficiency. (An Ultimate Glass Blade is recommended when cutting glass on this saw). The ball bearing arbor assembly has a grit slinger to protect precision bearings.


Its powerful 1/3 hp motor and 10" blade allow this saw to quickly and accurately cut through even the toughest materials. The power feed mechanism ensures a consistent and smooth feed rate, allowing you to focus on the quality of your cuts rather than the manual labor of feeding the material through the saw.


The saw's durable construction and easy-to-use design make it an ideal choice for anyone looking to make precise cuts in a variety of materials.


 In addition to its power feed feature, the Covington 10" Trim Saw also includes other unique features that make it a versatile and reliable tool. These features include a "Koolerant Kontrol" valve which virtually eliminates splash. Valve "C" adjusts the flow from reservoir "A" into blade compartment "B" to maintain proper coolant levels. Excess coolant from the cutting area returns to the reservoir. Twin drains allow easy cleaning of the sump.

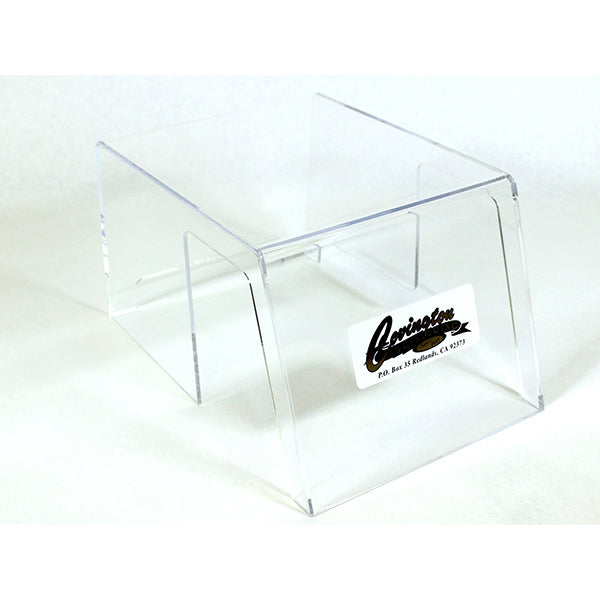

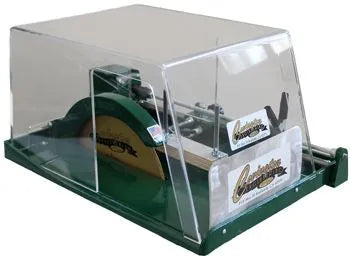

This saw includes an aluminum-topped Lam-I-Cushion base. A hood is optional. The saw ships assembled with motor, operating instructions, and product guarantee. The optional hood ships separately.


Whether you're a professional lapidary or a hobbyist, the Covington 10" Trim Saw with Power Feed is an essential tool for your workshop. Its precision, power, and ease of use make it the perfect choice for all your cutting needs.


Rock Vise


The Trim Saw Vise and Cross Feed is designed to slab small work samples. The vise jaws hold up to a 3-1/2" rock and will grip the work piece without blocks or shims. The cross feed adjusts 3-1/2" before stone must be repositioned in the vise. The end of the cross arm shaft has a "no bind" roller bearing and hook which ensures a smooth feed and prevents rocks from "riding up" the blade. This kit comes complete with a vise assembly, cross arm shaft, cross feed, knob, weight feed cord, and scales.


Features

  • Power feed feeds rock to saw automatically
  • Cross feed permits 3-1/2" of material to be slabbed without re-clamping
  • Maximum depth of cut with the rock vise is 3-1/2", without the rock vise is 3-3/4"
  • Bulldog vise grip holds ALL rock shapes and swings away for hand trimming
  • Hold-down hook runs under the tabletop so work piece can't climb blade or jam
  • 1/3 hp motor mounts directly on back of tank casting
  • Front shield protects operator from cutting waste
  • 5/8" steel arbor shaft
  • Covington Gold Series blade
  • Made in USA!

FAQ

What are the key features of the Covington 10" Trim Saw?

The Covington 10" Trim Saw includes a power feed for automatic rock feeding, a cross feed for slabbing, and a "Koolerant Kontrol" valve to manage coolant flow.

What materials can the Covington 10" Trim Saw handle?

It's designed for precise cutting of rocks, minerals, and glass, with specialized blades recommended for different materials.

What safety features does the Covington 10" Trim Saw include?

Features include a front shield to protect from cutting waste and a hold-down hook to prevent the workpiece from moving or jamming.

Can the Covington 10" Trim Saw's blade be adjusted for different material sizes?

Yes, it includes a rock vise and cross feed that allow for slabbing materials up to 3-1/2 inches without re-clamping.

Is the Covington 10" Trim Saw suitable for professional use?

Yes, its robust design and features like automatic feed and coolant control make it ideal for both professional and hobbyist lapidaries.

How do I maintain the Covington 10" Trim Saw?

Maintenance involves regular cleaning of the coolant tank and checks on the blade and motor to ensure optimal performance.
