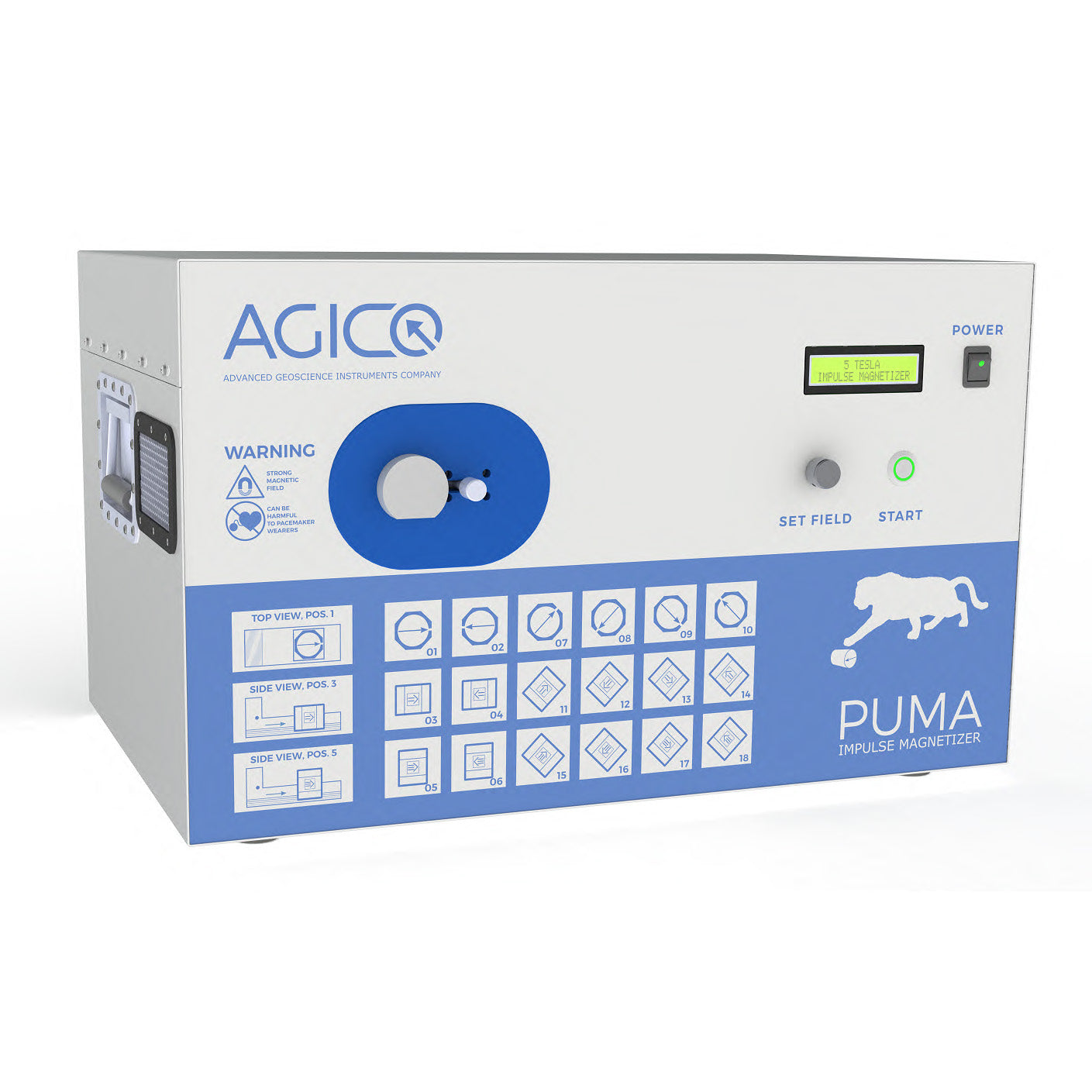

AGICO PUMA Impulse Magnetizer
This item is quoted upon request. To receive pricing please add it to your cart, then click the "add to quote" button on the cart page.
Manufacturer: AGICO
Country Of Origin: Czech Republic
The PUMA is designed as a precise high field impulse magnetizer. Inner diameter of magnetization coil is 41mm which allows to magnetize standard-sized paleomagnetic specimens in any orientation. PUMA enables to impart isothermal remanent magnetization (IRM) of the specimens in the wide range of intensities of magnetic fields from 1mT up to 5T. Elaborate design of the instrument provides precise setting of the pulse intensity as well as high homogeneity of the field over entire specimen volume.
Magnetization process is controlled by user friendly software PUMA or directly on the instrument panel.
Information Pamphlet
Manual
Main features
| ■ | Impulse magentization |
| ■ | 1 mT - 5000 mT (5 Tesla) |
| ■ | 18 magentization directions |

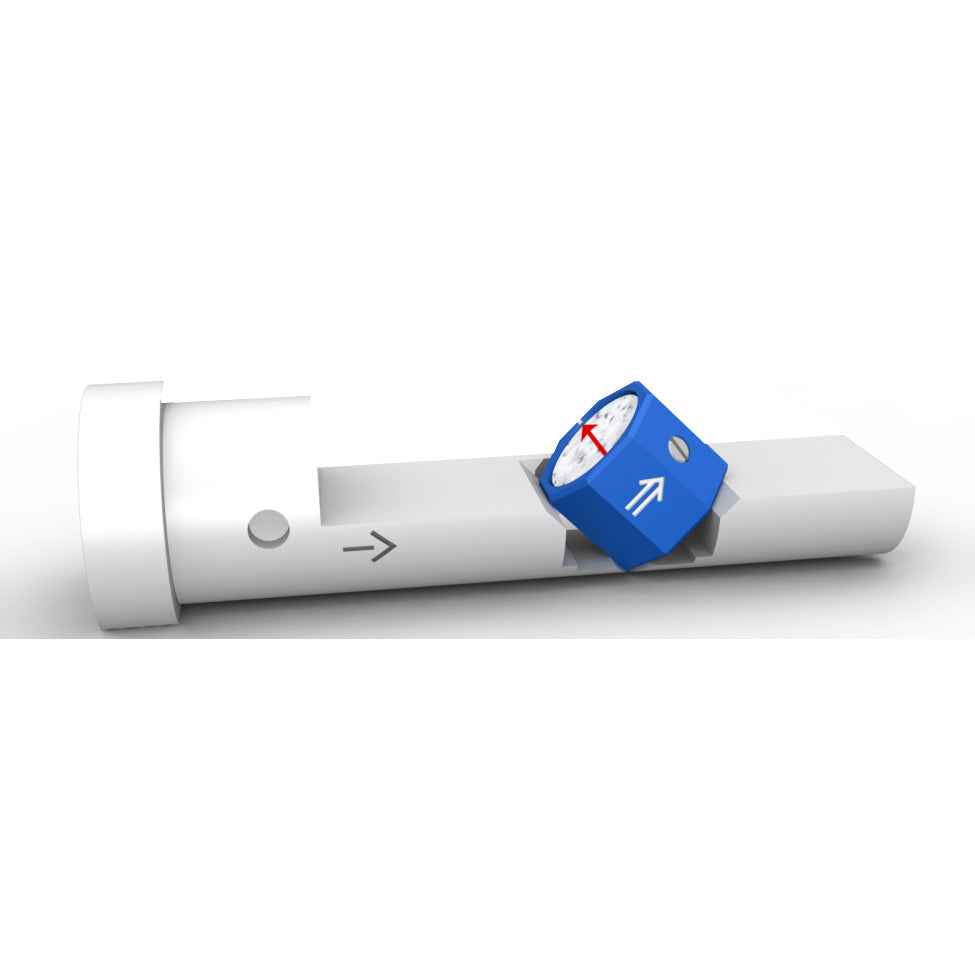

| ■ | 1 inch cylinders or 20/23 mm cubes |
| ■ | User friendly software |
Technical specifications
| Impulse field | 1 - 5000 mT |
| Length of pulses | ~ 7 ms |
| Dimensions, mass: | 715 x 435 x 500mm (28.2 x 17.1 x 19.7 inch), ~78 kg (172 lbs) |
| Power requirements | 120 or 230 V, 50/60 Hz, 1600 VA |
Specimens to be demagnetized
| Cylinder (regularly shaped specimens) | |
| Diameter | 25.4 ± 1 mm |
| Length | 22.0 ± 1 mm |
| Cube | 23x23x23 mm |
| 20x20x20 mm |
