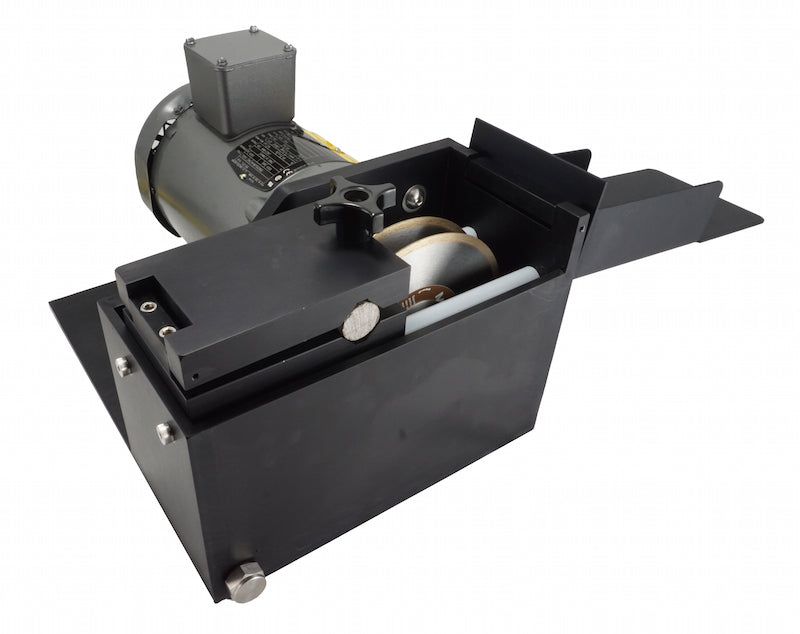

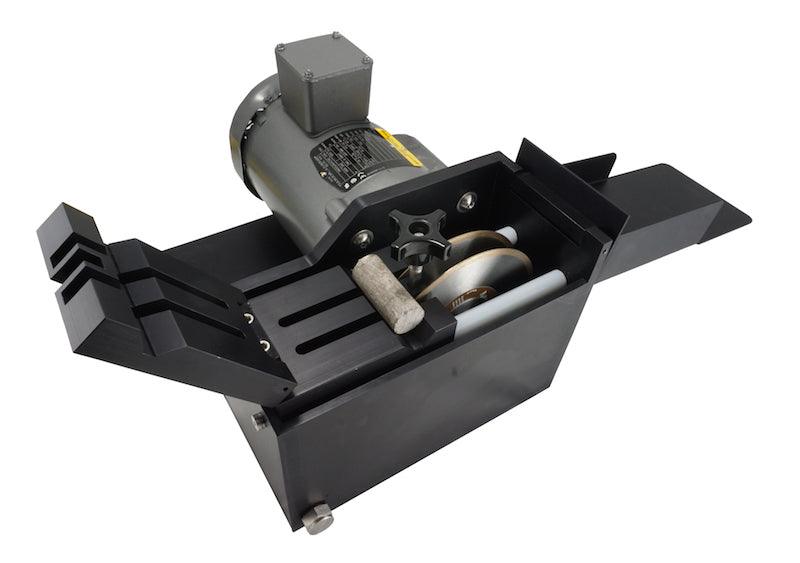

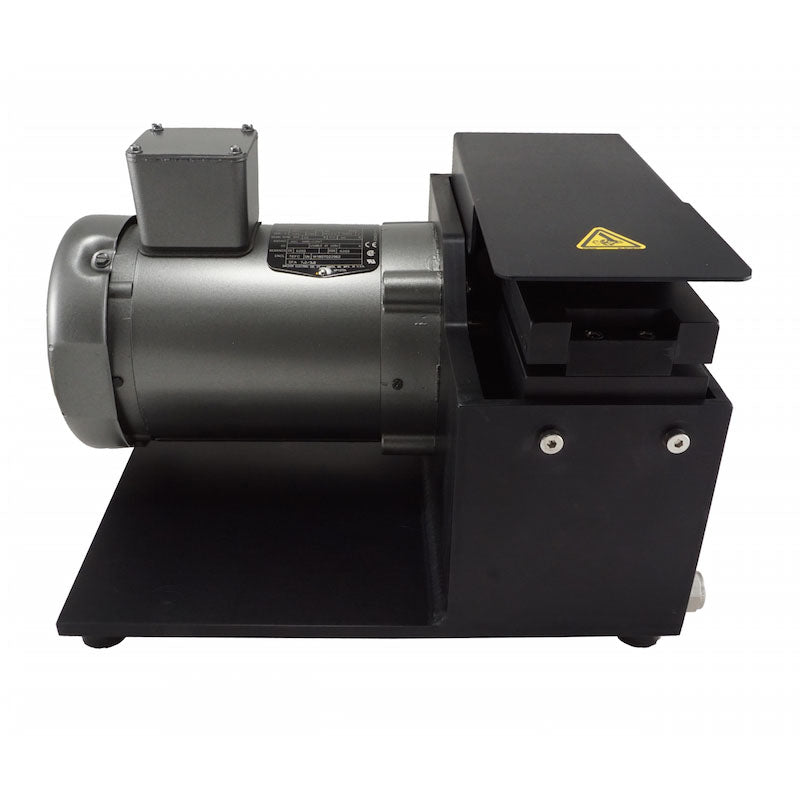

ASC Dual Blade Rock Saw

Specifically designed to slice 1″ (nominal) diameter rock cores for paleomagnetic analysis, ASC’s dual blade saw provides uniform length samples with a minimum of effort. Diamond blades are water cooled and can be adjusted to provide sample lengths between 0.75″ and 1.30″. Samples are held by a solid aluminum holder which travels on low friction UHMWPE guides which require no lubrication. The chassis is all aluminum plate with welded construction and an attractive hard anodized finish. Power is provided by a totally enclosed 1/4 hp motor with stainless steel arbor. The saw has a splash guard and is operated via a foot switch.

BLADES FOR DUAL-BLADE SAW

Available blades include the MK-303 Professional 6″ x .040 x 5/8 steel continuous rim blades or ASC’s non-magnetic bronze blades.

Spare blades can be purchased here
