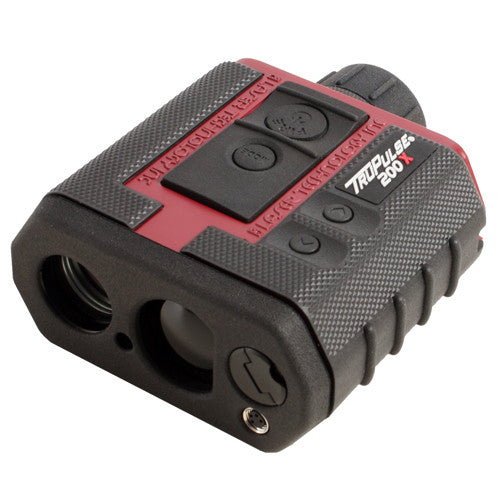

Laser Technology TruPulse 200X Laser Rangefinder
MPN: 7006875
Manufacturer: Laser Technology
Country Of Origin: USA
FREE SHIPPING ON ALL LASER RANGEFINDERS
Documents:
The TruPulse® 200X laser rangefinder makes high precision measurements for professionals working in challenging field conditions. Measure slope distance and inclination and calculate horizontal distance, vertical distance, height and 2D missing line values.
The 200X provides an in-scope LED display that easily adjusts to varying light conditions. Its advanced inclination and distance accuracy makes this laser rangefinder the most progressive product in the TruPulse Series line.
Take advantage of Laser Tech’s Advanced Targeting Modes (Closest, Farthest, Continuous and Filter) and TruTargeting Technology so you know exactly what accuracy level is being achieved. The TruPulse 200X can withstand harsh conditions with its rugged, waterproof housing and Bluetooth® wireless communication with most iPhones, Windows devices, and/or Android™ operating systems.
TruPulse 200X Specifications
|
Measures Azimuth with TruVector Compass Technology |
No |
|
Calculates SD, HD, VD and INC between two remote points |
Yes |
|
Distance Accuracy to Typical Targets |
+/- 4 cm (1.5 in) |
|
Distance Accuracy to Very Distant & Weak Targets |
+/- 4 to 30 cm (1.5 in to 1 ft) |
|
Max Range to Reflective Targets |
2500 m (8,200 ft) |
|
Max Range to Non-Reflective Targets |
1900 m (6,233 ft) |
|
Inclination Accuracy |
+/- 0.1° Typical |
|
Azimuth Accuracy |
N/A |
|
RS232 Serial Com Port |
Yes |
|
Bluetooth® Com Port |
Yes (iOS compatible ) |
|
Scope Magnification / In-Scope Display Type |
7X / LED |
|
In-Scope Field of View |
100 m @ 915 m away (330 ft @ 3,000 ft) |
|
Battery Type (8 hrs. of continuous use) |
(1) CR123A |
|
Waterproof / Environmental |
Yes / IP56 |
|
Temperature |
-20° to 60° C (-4° to 140° F) |
|
Size |
13 x 5 x 11 cm (5.2 x 2.1 x 4.5 in) |
|
Weight |
382 g (13.5 oz) |
|
Available Colors |
LTI Red |
FAQ
What is the maximum range of the TruPulse 200X?
The TruPulse 200X has a maximum range of 2,500 meters (8,200 feet) to reflective targets and 1,900 meters (6,233 feet) to non-reflective targets.
What is the distance measurement accuracy?
The distance measurement accuracy is +/- 4 cm (1.5 inches) to typical targets, and +/- 4 to 30 cm (1.5 inches to 1 foot) to very distant and weak targets.
Can the TruPulse 200X measure vertical angles and inclinations?
Yes, the TruPulse 200X can measure vertical angles and inclinations with an accuracy of +/- 0.1 degree.
What are the power source and battery life?
It is powered by one CR123A battery which provides approximately 8 hours of continuous use.
Is the TruPulse 200X waterproof?
Yes, it is waterproof and environmentally sealed to IP56 standards for protection against dust and water.
What are the operating temperature limits?
The TruPulse 200X can operate in temperatures from -20°C to 60°C (-4°F to 140°F).
Does it have any wireless data transfer capabilities?
Yes, it has a Bluetooth communication port that is compatible with iOS, Android and Windows Mobile devices.
What are the dimensions and weight?
The dimensions are 13 x 5 x 11 cm (5.2 x 2.1 x 4.5 inches), and the weight is 382 g (13.5 oz).
What is the magnification and field of view of the scope?
It has 7X magnification, and the in-scope field of view is 100 m at 915 m away (330 ft at 3,000 ft).
*Note: Target quality can be affected by atmospheric conditions, such as heat shimmer, dust, target reflectance, traverse angle to target and beam spread.
